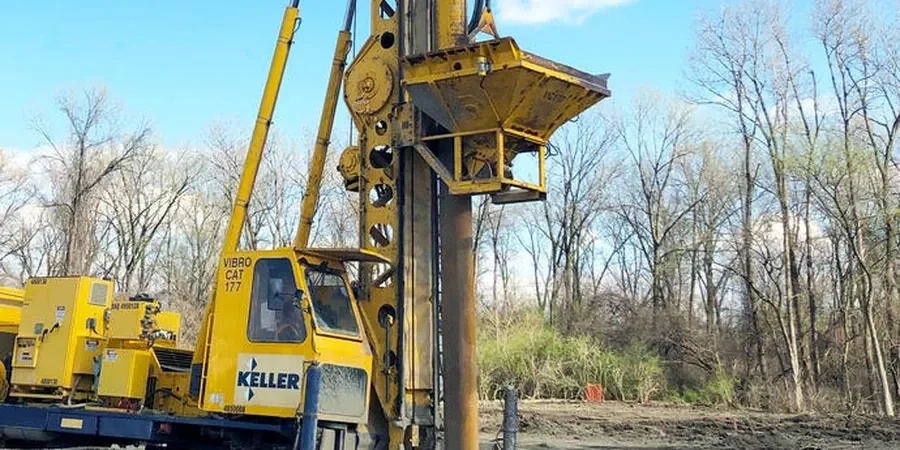

Dundee sits on a complex mix of glacial tills, raised beach deposits, and alluvial soils from the River Tay. The water table is often high near the waterfront, where loose sands and silts dominate. Vibrocompaction design in Dundee must account for these variable layers. Deep densification of cohesionless soils reduces settlement risk and boosts bearing capacity. We combine site data with field trials to define probe spacing, energy input, and depth of treatment. Before any design, a proper ground model is needed. That usually starts with ensayo SPT to profile relative density and fines content. The SPT blow counts guide the target densification parameters. Dundee's industrial sites and reclaimed land benefit directly from this method.
Dundee's loose fluvial sands respond well to vibrocompaction when fines content stays below 20 per cent – a threshold we check with every borehole.
Process overview
Local context
Eurocode 7 (EN 1997-1:2004) requires that Improvement designs demonstrate a reduction in settlements to acceptable limits. In Dundee, the main risk is uneven densification where the soil transitions from sand to stiff clay. That transition can cause differential settlement between treated and untreated zones. We run post-treatment verification with cone penetration tests to map the variability. If the fines content spikes above 20 %, the vibration energy no longer rearranges particles effectively. For those pockets, we recommend combining vibrocompaction with stone columns from the columnas de grava method. This hybrid approach handles the mixed ground conditions common in Dundee's brownfield sites.
Reference standards
BS EN 1997-1:2004 (Eurocode 7 – Geotechnical design), BS 5930:2015 (Code of practice for ground investigations), BS 1377 (Deep soil compaction using vibratory probes)
Additional services
Pre-treatment site investigation
Boreholes, SPT, and CPT to profile soil density and fines distribution across the site. We map the loose zones that require densification.
Vibrocompaction design and parameter selection
Calculation of probe spacing, depth of treatment, and energy input. We run field trials on a test grid to calibrate the design before full production.
Post-treatment verification
CPT and plate load tests to measure relative density gain and settlement reduction. We provide a compliance report signed by the geotechnical engineer.
Typical parameters
Quick answers
What is the maximum depth vibrocompaction can reach in Dundee's soils?
In the alluvial sands and gravels of the Tay valley, typical depths reach 18 metres. Deeper treatment requires larger vibrators and higher energy input. The practical limit is around 25 metres for most Dundee sites.
How does the high water table near the Dundee waterfront affect the design?
A high water table reduces the effective confining stress in the sand, making densification easier. However, it also increases the risk of liquefaction during vibration. We adjust the probe withdrawal rate and maintain a continuous backfill of gravel to prevent collapse of the hole.
What is the typical cost range for vibrocompaction design in Dundee?
The cost for a full design package, including field trials and verification, ranges between £1,080 and £3,780. This varies with site area, depth of treatment, and the number of verification tests required by the engineer.
Can vibrocompaction be used on reclaimed land along the Tay Estuary?
Yes, but only if the fill consists of clean sands or gravels with low fines content. Reclaimed areas often contain pockets of silt or clay that do not densify with vibration. A pre-treatment CPT survey is essential to identify those zones before design.
