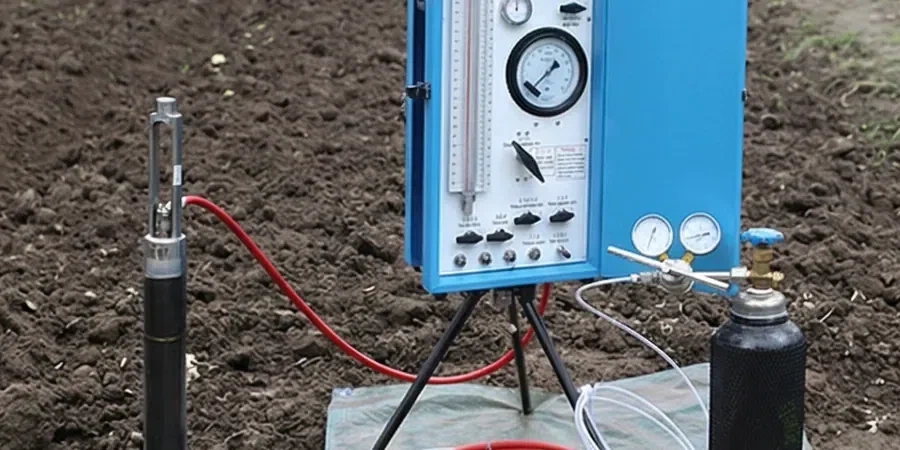

In Dundee, many site investigations rely on standard penetration tests, but for deep foundations or stiff boulder clay, that alone can miss the mark. The Ménard pressuremeter test (PMT) gives us a direct measurement of soil stiffness and limit pressure in situ. We often run it alongside a corte directo test to cross-check shear strength parameters when the client needs a complete picture before piling design. The technique is especially valuable here because the glacial tills around Dundee can vary significantly over short distances. We inflate a cylindrical probe at a controlled rate and record the pressure-volume curve. That curve tells us the modulus and the failure pressure. It is not a routine test, but when the structural loads are high or the ground conditions are complex, PMT is the most reliable tool we have.
The PMT curve reveals local stiffness variations that no borehole log alone can show, especially in Dundee's glacial tills.
Process overview
Local context
Dundee grew rapidly during the 19th century as a jute and whaling port, and many of its older buildings sit on variable fill or soft alluvial deposits near the Tay. Without a pressuremeter test, engineers risk underestimating settlement under high column loads. The PMT gives us the in situ stiffness needed to predict how much the ground will compress. We have seen cases where the SPT N-values suggested competent ground, but the PMT revealed low modulus in a thin sand layer. That kind of discrepancy can lead to differential settlement if not caught early. For sensitive structures or retrofit works, we always recommend PMT as part of the investigation.
Reference standards
BS 5930:2015 (Code of practice for ground investigations), Eurocode 7 (EN 1997-1:2004), BS 1377 (Standard test methods for PMT in soil)
Additional services
PMT Data Interpretation & Foundation Design Parameters
We process the pressure-volume curves to derive design values for settlement analysis, bearing capacity, and lateral soil resistance. The output includes E_M and p_L profiles, along with recommended allowable bearing pressures for spread footings or pile shaft friction.
Integrated PMT & SPT Investigation
For sites where both stiffness and penetration resistance are needed, we combine PMT with standard penetration testing in the same borehole. This gives a complete picture: blow counts for liquefaction screening and pressuremeter data for settlement predictions.
Typical parameters
Quick answers
How long does a Ménard pressuremeter test take per depth?
Each test takes about 20 to 30 minutes from setup to completion, including the hold periods at each pressure increment. A typical investigation with 4 to 6 test depths takes half a day on site.
What is the difference between PMT and SPT?
SPT measures penetration resistance (N-value) which correlates to relative density and strength. PMT measures in situ stiffness and limit pressure directly, giving a stress-strain curve. For settlement calculations, PMT is more accurate because it captures the actual soil response under load.
Can the PMT be performed in gravelly soils common in Dundee?
Yes, but it requires careful borehole preparation. Gravel lenses can damage the probe membrane if not cleared properly. We use a slightly oversized casing and flush the borehole with water to remove large particles before inserting the probe.
How much does a Ménard pressuremeter test cost in Dundee?
A single PMT point typically costs between £800 and £1.100, depending on depth, access conditions, and the number of tests required. Volume discounts apply for multiple test depths in the same borehole.
