Dundee's urban fabric grew rapidly during the 19th-century jute boom, with factories, mills, and tenements built over the floodplain of the Tay and its tributaries. This legacy means much of the city's subsurface is a patchwork of made ground, old foundations, and former industrial drainage. For any excavation or redevelopment, a GPR survey in Dundee provides the fastest non-intrusive way to map buried utilities, voids, and structural remnants before breaking ground. Complementing this with a placa de carga test helps verify bearing capacity on sites with variable fill; for deeper profiles, a vs30/" data-interlink="1">MASW / Vs30 survey offers shear-wave velocity data to characterise stiffness across the site.
A GPR survey in Dundee maps buried utilities and obstructions in days, not weeks, reducing excavation risk on sites with complex made ground.
Process overview
Local context

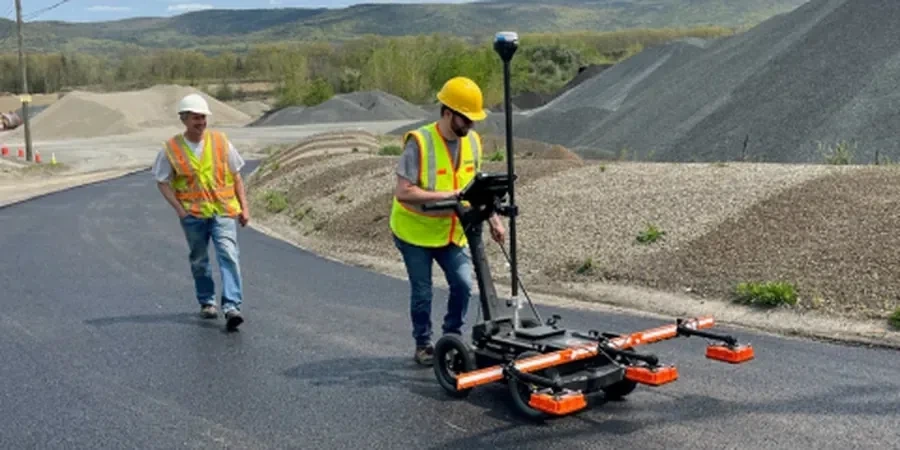

The GPR antenna is a compact, wheeled unit that can be pushed across grass, asphalt, or concrete without traffic disruption. In Dundee's narrow closes and steep lanes, the equipment folds down to fit through standard doorways, allowing surveys inside basements and ground-floor slabs. The risk of missing a target is minimised by overlapping transects at 0.5 m spacing in high-density zones. Real-time data display on the control unit lets the operator flag anomalies immediately, so re-scans happen on the spot rather than requiring a second mobilisation.
Reference standards
BS 5930:2015 (Code of practice for ground investigations), Eurocode 7 – EN 1997-2:2007 (Geotechnical design – Ground investigation and testing), BS 5930 (Standard guide for using the surface GPR method)
Additional services
Utility & Void Mapping Survey
Targeted GPR scanning to locate buried pipes, cables, tanks, and voids on sites up to 2,000 m². Includes real-time flagging of anomalies, CAD overlay of findings, and a written report with depth estimates. Ideal for pre-excavation clearance on brownfield land in Dundee's industrial zones.
Structural & Slab Imaging Survey
High-frequency GPR (900 MHz – 1.6 GHz) for inspecting reinforced concrete slabs, walls, and bridge decks. Maps rebar spacing, cover depth, post-tensioning ducts, and internal voids. Common for heritage building assessments in Dundee's conservation areas and for floor condition surveys in former mill buildings.
Typical parameters
Quick answers
How deep can a GPR survey see in Dundee's ground conditions?
Typical penetration ranges from 1.5 m to 4 m depending on soil type. In the sandy gravels and made ground common near the Tay, we achieve around 2.5–3 m with a 400 MHz antenna. Dense clay or saturated fill reduces this to about 1.5 m, while dry granular deposits can reach 4 m.
Does GPR work on wet or recently rained-on ground?
Yes, but performance is affected. Saturated clay-rich soils attenuate the radar signal more quickly, reducing depth penetration. For sites in Dundee's riverside areas, we prefer to survey after 24–48 hours of dry weather if the target depth exceeds 2 m. Light rain has minimal impact on utility detection.
What is the typical cost range for a GPR survey in Dundee?
For a standard utility survey on a 1,000 m² site, costs range from £6,360 to £930 depending on grid density, access constraints, and reporting detail. Smaller slab inspections start around £750. A full written quote is provided after reviewing site plans and survey objectives.
Can you survey inside occupied buildings without disrupting operations?
Absolutely. The equipment is silent, vibration-free, and requires no drilling or trenching. Surveys can be carried out during normal working hours in offices, retail spaces, or residential buildings. We coordinate with building management to minimise foot traffic disruption in high-use areas.
