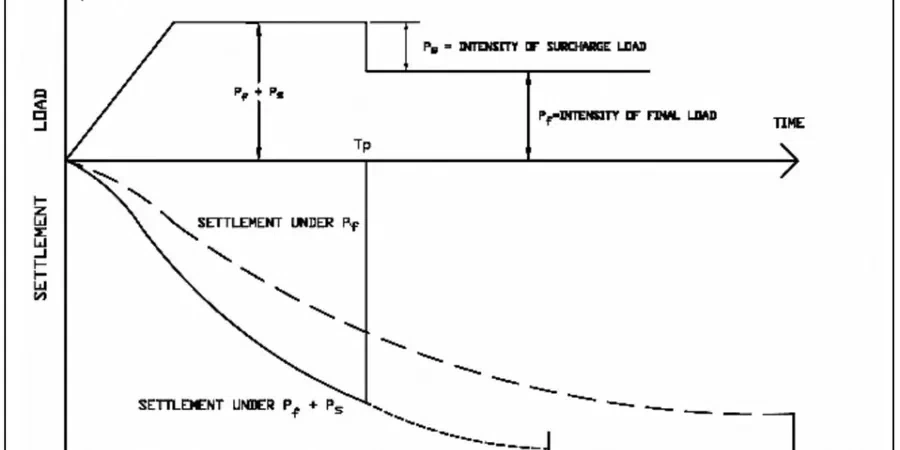

The soft estuarine clays and silts underlying much of Dundee, particularly around the waterfront and along the Tay estuary, present a classic challenge for foundation engineers. These deposits, often exceeding 10 m in thickness, exhibit high compressibility and low undrained shear strength. Preloading with surcharge design is a well-established method to accelerate primary consolidation and reduce post-construction settlement. In our experience, a properly designed surcharge program, using staged fills and monitored with settlement plates and piezometers, can achieve 90% primary consolidation in 3 to 6 months. Before specifying the surcharge height and duration, we always run a detailed consolidation test to determine the coefficient of consolidation (cv) and the pre-consolidation pressure (σ'p). Complementing this with a placa de carga test on site provides a direct check of the modulus of subgrade reaction under the proposed embankment load.
A staged surcharge program in Dundee's soft estuarine clays can achieve 90% primary consolidation in 3 to 6 months with proper monitoring.
Process overview
Local context
The cool, damp climate of Dundee, with average annual rainfall around 650 mm, creates a specific risk for surcharge fills: prolonged wet weather can soften the working platform and reduce the bearing capacity of the underlying clay. This is especially critical during the first lift placement. We advise scheduling surcharge construction during the drier months (April to September) and using a geotextile separation layer to prevent intermixing of fill and subsoil. Another risk unique to the Tay estuary area is the presence of peat lenses in some river terrace deposits, which can cause sudden differential settlements if not identified during the site investigation. A preloading with surcharge design that does not account for these local heterogeneities may lead to unacceptable post-construction settlements, particularly in road embankments and building slabs.
Reference standards
BS 5930:2015 (Code of practice for ground investigations), Eurocode 7 (BS EN 1997-1:2004) – Geotechnical design, CIRIA C760 (Guidance on preloading and vertical drains), BS 1377-5/D2435M-11 (Standard test method for one-dimensional consolidation)
Additional services
Consolidation Testing (Oedometer)
Multi-stage oedometer tests to determine cv, σ'p, and compression index (Cc) for each soil layer, including permeability estimation for drainage design.
Settlement Analysis
1D consolidation settlement predictions using Terzaghi's theory, incorporating staged loading and time-rate curves for the surcharge program.
Vertical Drain Design (PVDs)
Design of prefabricated vertical drains to accelerate consolidation, including spacing, depth, and equivalent drainage path calculations per Hansbo's method.
Instrumentation & Monitoring
Installation and monitoring of settlement plates, pneumatic piezometers, and inclinometers to verify performance and trigger surcharge removal.
Typical parameters
Quick answers
What is the typical cost range for a preloading with surcharge design in Dundee?
The cost for a preloading with surcharge design study in Dundee typically ranges from £690 to £2,140, depending on the number of boreholes, laboratory tests, and the complexity of the analysis. The final price is confirmed after reviewing the site investigation scope.
How does the soft clay in Dundee affect the surcharge duration?
The soft estuarine clays in Dundee have a low coefficient of consolidation (cv between 1.5 and 5 m²/year), which means primary consolidation can take 6 to 12 months without vertical drains. With a properly designed PVD system, the same degree of consolidation (90%) can be achieved in 3 to 4 months.
Is preloading with surcharge suitable for all soil types in Dundee?
No. Preloading is most effective for normally consolidated to lightly overconsolidated clays and silts. It is not suitable for highly organic soils (peat) or loose granular deposits where liquefaction or collapse settlement may occur. A preliminary site investigation is essential to confirm applicability.
What monitoring instruments are recommended during surcharge placement?
We recommend settlement plates at the base of the fill to measure vertical deformation, pneumatic piezometers to track pore pressure dissipation, and inclinometers near adjacent structures to detect lateral movement. Data is collected weekly and analyzed using the Asaoka method to confirm the degree of consolidation.
Can preloading with surcharge be combined with other Improvement methods?
Yes. In Dundee, surcharge is often combined with vertical drains (PVDs) to accelerate consolidation. For very soft layers, a working platform of granular fill with a geotextile separator is used to prevent bearing capacity failure. In some cases, vacuum consolidation is added to increase the effective stress without additional fill height.
